Shanghai Dongmeng crawler mobile station is professionally developed for mining, sand and aggregate processing, construction waste recycling and other working conditions. Adopting crawler self-propelled design with dual power options of diesel and electric drive, it features flexible transition, no infrastructure required and put into operation on arrival. It can realize high-efficiency crushing, screening and multi-grade finished aggregate production, being an intelligent and efficient overall solution for on-site operation.

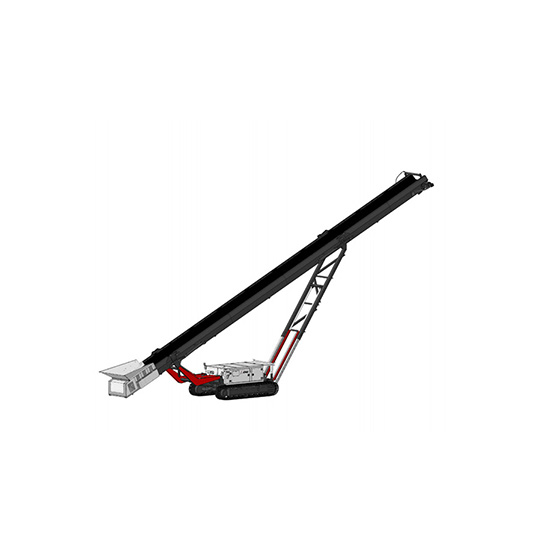

| Tracked Conveyor Parameters | |
|---|---|
| Length | 20 m |
| Belt Width | 1000 mm (plain belt) |
| Drive Type | Diesel-Hydraulic |
| Discharge Height (at 25°) | 9 m |
| Stockpile Capacity (at 25° & 37° angle of repose) | 1300 m³ |
| Capacity | 400 TPH |
| Adjustment Functions | Hydraulic conveyor angle adjustment, hydraulic feed-in height adjustment, variable speed control |
| Transport Feature | Hydraulic fold over for transport |
| Power Unit | |
|---|---|
| Engine (Tier 3) | WEICHAI WP3.2, 37.5kW (50Hp) |
| Engine (Tier 4f / Stage V) | Deutz D2.9 L4, 36.4kW |
| Fuel Tank Capacity | 150 L |
| Working Angle (°) | Length (m) | Width (m) | Height (m) | Discharge Height (m) | Stockpile (m³) |
|---|---|---|---|---|---|
| 18° | 19.74 | 2.3 | 7.6 | 6.9 | 606 |
| 20° | 19.50 | 2.3 | 8.15 | 7.5 | 780 |
| 22° | 19.32 | 2.3 | 8.70 | 8.0 | 945 |
| 24° | 19.00 | 2.3 | 9.25 | 8.55 | 1132 |
Dual Power Options, Strong & Reliable Performance
Tracked Mobility, No Infrastructure Required
Highly Customizable, Adaptable to Diverse Needs
Durable & Efficient, Built for Continuous Operation
